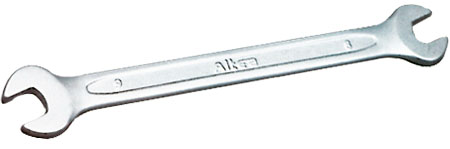

AL - 1600 Series
Double Open & Ring End Spanner Cold Stamp (Din-3110) |
| Drop Forged, Long Pattern Chrome Vanadium Steel, Chrome Plated Polish Head available in Loose Pieces and Sets |
 |
Din-3110
|
Art No.
AL Series |
Size |
Length MM |
Net wt.
In gms. |
| 1601 |
6x7 |
122 |
23 |
| 1602 |
8x9 |
140 |
32 |
| 1603 |
10x11 |
155 |
50 |
| 1604 |
12x13 |
171 |
62 |
| 1605 |
14x15 |
190 |
80 |
| 1606 |
16x17 |
204 |
110 |
| 1607 |
18x19 |
220 |
150 |
| 1608 |
20x22 |
235 |
200 |
| 1609 |
21x23 |
248 |
230 |
| 1610 |
24x26 |
267 |
320 |
| 1611 |
24x27 |
267 |
275 |
| 1612 |
25x28 |
280 |
345 |
| 1613 |
30x32 |
301 |
450 |
|
| |
| METRIC SIZES |
Art No.
AL Series |
No. of PCS/Set |
Size MM |
Net Wt. in gms. |
| 1650 |
6 |
6x7,8x9, 10x11,12x13, 14x15,16x17. |
357 |
| 1651 |
8 |
6x7,8x9,10x11,12x13, 14x15,16x17,18x19, 20x22. |
707 |
| 1652 |
12 |
6x7,8x9, 10x11,12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 |
2007 |
|
|
