AL - 1100 Series

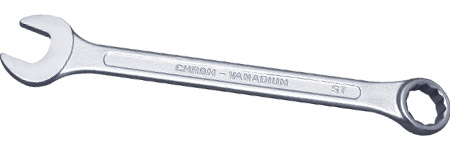

Combination Open & Ring End Spanner (DIN 3113A) |
| Drop Forged , Recessed Panel Chrome Vanadium
Steel Chrome Plated Polish Head available in
Loose Pieces and Sets |
 |
DIN 3113A
|
Art No.
AL Series |
Size |
Length MM |
Net wt.
In gms. |
| MM |
SAE |
| 1101 |
6 |
1/4 |
100 |
18 |
| 1102 |
7 |
|
110 |
20 |
| 1103 |
8 |
5/16 |
120 |
24 |
| 1104 |
9 |
|
130 |
28 |
| 1105 |
10 |
3/8 |
140 |
38 |
| 1106 |
11 |
7/16 |
150 |
48 |
| 1107 |
12 |
|
160 |
55 |
| 1108 |
13 |
½ |
170 |
60 |
| 1109 |
14 |
9/16 |
180 |
80 |
| 1110 |
15 |
|
190 |
90 |
| 1111 |
16 |
5/8 |
200 |
105 |
| 1112 |
17 |
11/16 |
210 |
115 |
| 1113 |
18 |
|
220 |
130 |
| 1114 |
19 |
3/4 |
230 |
145 |
| 1115 |
20 |
|
240 |
170 |
| 1116 |
21 |
13/16 |
250 |
175 |
| 1117 |
22 |
7/8 |
260 |
185 |
| 1118 |
23 |
|
270 |
230 |
| 1119 |
24 |
15/16 |
280 |
260 |
| 1120 |
25 |
1 |
290 |
300 |
| 1121 |
26 |
|
300 |
325 |
| 1122 |
27 |
1.1/16 |
310 |
350 |
| 1123 |
28 |
1.1/8 |
320 |
400 |
| 1124 |
29 |
|
330 |
455 |
| 1125 |
30 |
|
340 |
480 |
| 1126 |
32 |
1.1/4 |
360 |
575 |
|
| |
| METRIC SIZE |
Art No.
AL Series |
No. of PCS/Set |
Size MM |
Net Wt. in gms. |
| 1150 |
5 |
(8,10,12,14,17) |
312 |
| 1151 |
6 |
(8,10,12,13,14,17) |
372 |
| 1152 |
8 |
(8,9,10,11,13,14,17,19) |
538 |
| 1153 |
11 |
(6-14,17,19) |
631 |
| 1154 |
12 |
(6-14,17,19,22) |
816 |
| 1155 |
14 |
(8-17,19,21,22,24) |
1408 |
| 1156 |
17 |
(6-22) |
1486 |
| 1157 |
25 |
(6-28,30,32) |
4406 |
| 1158 |
26 |
(6-30,32) |
4861 |
|
|
