AL -2100 Series

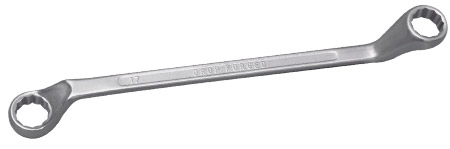

Deep Offset Bi-Hexagonal Ring Spanner |
| Drop Forged, Recessed Panel Carbon Steel, Chrome Plated available in Loose Pieces and Sets |
 |
| Deep Offset Bi-Hexagonal Ring Spanner |
Art No.
AL - Series |
Size |
Length MM |
Net wt.
In gms. |
| 2101 |
6x7 |
183 |
50 |
| 2102 |
8x9 |
192 |
60 |
| 2103 |
10x11 |
202 |
85 |
| 2104 |
12x13 |
217 |
115 |
| 2105 |
14x15 |
233 |
130 |
| 2106 |
16x17 |
251 |
170 |
| 2107 |
18x19 |
268 |
200 |
| 2108 |
20x22 |
296 |
275 |
| 2109 |
21x23 |
322 |
295 |
| 2110 |
24x27 |
330 |
370 |
| 2111 |
25x28 |
345 |
395 |
| 2112 |
30x32 |
370 |
515 |
|
| |
| METRIC SIZES SETS |
Art No.
AL - Series |
No. of PCS/Set |
Size MM |
Net Wt. in gms. |
| 2150 |
6 |
6x7, 8x9, 10x11, 12x13, 14x15, 16x17 |
595 |
| 2151 |
8 |
6x7,8x9, 10x11,12x13,14x15,16x17,18x19, 20x22 |
1005 |
| 2152 |
12 |
6x7, 8x9, 10x11, 12x13, 14x15, 16x17,18x19, 20x22, 21x23, 24x27,25x28, 30x32 |
2580 |
|
|
